Saturday, March 31, 2012
She is done, well it will never be done as teardropper's say, there will always be things to add and or change. But its done enough for me to enjoy it and start doing some camping in luxury, no more tents for me. Thanks to everyone that watchd me through my build, it was a lot of fun and a great learning experience. You can also check out my videos and picture details on the links below.
Sunday, March 18, 2012
Wednesday, February 15, 2012
Its a raining cold winter day in Southern California, kinda nice for a change. The build continues, I have three coats of epoxy on the roof, waiting for it to cure for a few days then I'll sand it smooth and paint the roof. I've been working on the galley dividers and shelves, it will be a simple design with no doors. I'm thinking about adding a water tank / water heater and 12 volt electric pump but that can wait. Still some work in the cabin and other things to finish off, but I see light at the end of the tunnel. Maybe I'll take it for a test run next week, Hhhhhmmmmmm !
Sunday, February 5, 2012
The hatch is done with supports in place and trim on, took about a day to get everything done. Also received my Raka epoxy so I'm in the process of putting the final coats on the roof, after that will be paint and trim. Still waiting on my roof top brackets, but they can be added at anytime, Also picked up some more switches for the galley and disconnect/ connectors for the solar panel wiring from the panels to the controller.
Wednesday, January 25, 2012
I ran out of Raka epoxy, so I ordered a 1/2 gallon kit, that should be enough to finish the roof with 3 or four coats. I also ordered some braodhead rivets so I can attach my trim to my hatch .I mounted my hurricane hinge and attached my hatch supports. I tried using gas piston type supports but could not get the to work correctly, the old finished mechanical supports will work just fine. Now I can work on my galley lights and cabinets.
Sunday, January 15, 2012
The roof now has to layers of 1/8 inch Luan in place, sealed between the cabin ceiling and the roof is 1 1/2 inch of insulation, this was glued in place with Loctite PL Premium construction adhesive, then each layer of Luan was glued in place with the same adhesive. I sealed the screw holes from the firring strips I used to hold the Luan in place until the adhesive cured. Next will be 3 coats of Raka epoxy and 3 coats of marine topside paint will be applied, same process that I used on the hatch and walls.
Friday, December 23, 2011
Its a couple days before Christmas now, all the presents are bought and wrapped, Holidays are such a wonderful time to spend with your family and friends, wishing you all a Very Merry Christmas and all the other holidays that are celebrated throughout the world, May there be Peace On Earth !
The build continues on slowly but surely, I 'm still in the process of adding insulation to the roof, front of the trailer has one layer of 1/8 luan, when the insulation is finished I'll finish the first layer luan then add the second, then 3 coats of Raka epoxy and 3-4 coats of Pettit Topside paint.
The build continues on slowly but surely, I 'm still in the process of adding insulation to the roof, front of the trailer has one layer of 1/8 luan, when the insulation is finished I'll finish the first layer luan then add the second, then 3 coats of Raka epoxy and 3-4 coats of Pettit Topside paint.
Tuesday, December 6, 2011
Had a partial meltdown on my blog last week, seems OK now. I received my 2 - 40 watt panels last Friday, stainless steel hinge with rivets has been installed, now I'm looking for a couple of suitcase type handles, also need to pick up a controller and 50 feet of 10 gauge wire to connect from the panel to the controller. I have the hatch back on with the taillights wired and working. Also I'm insulating and skinning the roof.
Monday, November 21, 2011
The hatch has been coated with 3 coats of Raka epoxy on the inside and outside and 3 coats of white Pettit Topside epoxy paint on the outside, the hurricane hinge is on the hatch and I'm fitting my trim pieces for my hatch as well. I also installed a couple of back up lights with a manual switch to turn them on, it's mounted on the underside of the trailer.
Sunday, November 6, 2011
The cabin interior is done except for a couple pieces of trim and the rear bulkhead. All the interior lights, switches, 12 and 120 volt outlet and ceiling fan is working. I'm starting on the exterior insulation for the roof and skinning the inside of my galley hatch. I also bought two 40 watt solar panels that I'll be working on, I'm really excited about that and can't wait to get them and start experimenting with them. I'll post some pictures of my latest progress soon.
Thursday, October 20, 2011
Rear inside cabinet is starting to take shape and should be permanently in place within the next week or so, along with the panel for the light switches, and the 12 / 120 vlt outlets. Carpet is also in place on the ceiling, odd concept to place carpet on the ceiling but it helps to hide the imperfections, 1/4 molding will be put in place from the ceiling to wall transition. it was a major PIA to glue the carpet to the ceiling.
Next thing I want to accomplish is is to skin the inside of the hatch, and start insulating the roof.
Next thing I want to accomplish is is to skin the inside of the hatch, and start insulating the roof.
Friday, October 7, 2011
Thursday, September 29, 2011
Well my posts are becoming further apart, use to be every couple of week's now it seems to be monthly, work is progressing but rather slowly at times. The details are taking me time to figure out, such as the hatch support, originally I went with 150 lb gas struts but they were to strong and was pulling my hurricane hinge out of the wood, instead of buying different gas struts as so many people do I decided to go with mechanical hatch supports that lock into position once the hatch has been raised, a simple design that works for me. I've also got one coat of Raka epoxy on the hatch, varnish on my inside rear cabinet parts, wiring run for cabin, galley and second set of taillight's.
Next steps are to finish the rear cabin cabinets, put the carpet on the ceiling, mount the remaining lights, as well as finishing the rear hatch with a couple more coats of epoxy on the outside and put the wood on the inside of the galley hatch and mount the lights, paint and trim the outside hatch, once those tasks are complete then I'll move on the the roof add the insulation, skin and epoxy the top, etc, etc, etc. Still a lot more to do, one step at a time.
Next steps are to finish the rear cabin cabinets, put the carpet on the ceiling, mount the remaining lights, as well as finishing the rear hatch with a couple more coats of epoxy on the outside and put the wood on the inside of the galley hatch and mount the lights, paint and trim the outside hatch, once those tasks are complete then I'll move on the the roof add the insulation, skin and epoxy the top, etc, etc, etc. Still a lot more to do, one step at a time.
Sunday, August 21, 2011
Galley hatch has been framed and additional set of tail / stop and turn lights added to the rear most section. I was concerned that the taillights on the fenders would not be seen from certain angles so I added a extra set just in case. I'm also working on the wiring for the cabin lights and fan using 16 gauge stranded marine wire. Front cabinet will have 2 small red and white LED on the inside and 2 spot white LED swivel reading lights mounted on the underside of the front cabinet. I ordered the trim aluminum pieces for my hatch and will be working on that as well.
Monday, July 11, 2011
Sunday, July 3, 2011
Its been almost a year since I started the build, my how time flys. I 've started building the front cabinet and started testing my LED lights, I think I'll have two reading lights under the cabinet then small LED red and white in the cabinets as accent lights. Still deciding if I will go with a LED dome light, but if I do it will be a 5. 5 inch with a white / red combo light. Also thinking of LED porch lights from SoCal Teardrops. I did a test of running my fridge and 4 LED and 2 reading lights for 24 hours using a PC 1230 Odyssey battery, the fridge was set at 29 degrees F. with a outdoor air temp around 80 degrees average, The battery had 13.33 volts when I started the test and when it ended 24 hours later the battery had 12.20 volts.
Sunday, June 26, 2011
Saturday, June 25, 2011
I've glued three sheets of 4 x 8 luan together using 6 inch wide luan strips and overlapping the panels, once dry I'll cut to fit the glue to the spars and hold in place with 1 x 2's until it sets up. I may need to wet the wood with hot water were the bend is if it is not flexible enough. One the ceiling is in I can decide if I will leave it bare wood with a coat of varnish or cover with carpet. I also picked up a 4x8x 3/4 sheet of birch, this will be used as my bulkhead between the galley and cabin area.
Sunday, June 19, 2011
Monday, June 13, 2011
Well its been awhile since my last post, life has kept me busier than usual and I have not been able to spend much time on the build lately. I do have my other wall finished and mounted on the trailer frame. I still need to mount the door, trim pieces, and window, after that I'll start on the galley and cabinets. I'm starting to collect some LED lights for the cabin and galley area as my goal it to cut down on the amount of power being used by eliminating the standard filament type bulbs. All my lights will be LED, these will draw less amps, the two main things that will draw the most power will be my Fantastic fan and my ARB fridge. I'm also looking at adding a couple of 45 watt solar panels to charge my batteries as well as to provide constant power when dry camping.
Subscribe to:
Posts (Atom)
Build costs
- Total to date
- Roof rack brackets $100.00
- LED galley lights $60.00
- Trim, latches and handle for hatch $130.00
- Paint and epoxy for roof $125.00
- Wood for cabin cabinets and roof $200.00
- LED Cabin Lights $60.00
- Door Hinges $120.00
- Misc. glue, bolts and varnish $200.00
- Aluminum door trim $135.00
- Cabin lights, 15A inlet, 120 vlt outlet box's $110.00
- 3 - 4 x 8 x 1/4 birch inside walls $90.00
- 2- 4 x 10 x 1/4 ACX plywood for outside walls $120.00
- DMV Registration $165.00
- Electrical, 12 vlt outlets, battery terminals, fuse block, $130.00
- Galley hinge and door handle assemblies $150.00
- Framing material for walls $120.00
- Monroe Retro Shock kit $100.00
- Bottom flooring ACX 3 sheets of 1/4 in 4 x 8 $60.00
- 1 Gallon of Raka epoxy $100.00
- Top flooring Arauco ACX 3-sheets of 1/2 in 4 x 8 $90.00
- Contura switches and housing units $30.00
- Pettit underside floor paint. $30.00
- Primer and undercoating paint for fenders $20.00
- Stainless sub-frame hardware $40.00
- Fabrication for Fenders and Mounts $300.00
- Front and rear jacks $200.00
- Electrical parts for towing $150.00
- Frame Fabrication $250.00
- Sub-floor materials $75.00
- Rust Bullet Frame Paint $70.00
- Tow Hooks Qty 4 $40.00
- Wheel adapters $90.00
- 2 in ball reciever for 3 in tongue $35.00
- Leaf Spring Hanger Kit $20.00
- 2- 4 x 8 x 1/8 luan for profile template $20.00
- 3500 Axle electric brakes aprox $350.00
- 15" X 18" Windows $140.00

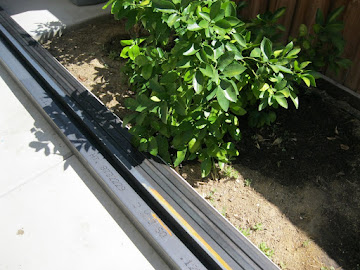

- Steel for frame $320.00
- Build manual $60.00
- Paddle Door latches $45.00
- Propane tank and bracket $90.00
- Benroy & Modernistic Trailer Template $90.00
- Fantastic Vent 5000RBT $152.00
- Tires $235.00
- Used Wheels $150.00
